VK-200HP : Homeplug 200Mbps Ethernet Bridge |
|||
|
▪ Product Features |
▪ Product Image |
||
|
|
|||
| ▪ Complies with HomePlug 1.0/AV Specification | |||
| ▪ Supports 128-bit AES Encryption | |||
| ▪ Coexists with HomePlug 85Mbps and 14Mbps Bridge | |||
| ▪ Supports Full Multimedia Home Networking | |||
| ▪ Supports Data Rates Up to 200Mbps | |||
| ▪ Transmission Range Up to 200 Meters | |||
| ▪ Supports QoS | |||
| ▪ Plug-and-Play Installation | |||
| ▪ Integrates 100V ~ 230V Switching Supply | |||
| ▪ Maximum 64 nodes in one homeplug communication | |||

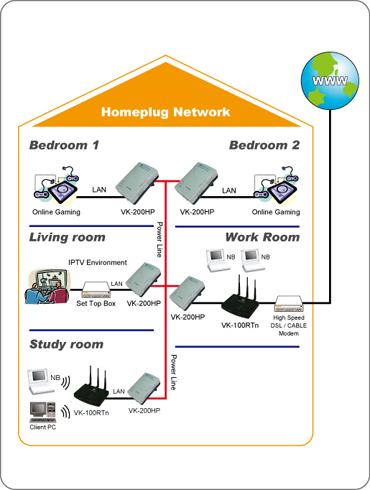

| ▪ Expands a wireless network into a "dead zone" when | |||
| wireless signals can not reach in some areas | |||
| ▪ Standard Definition (SD) or High Definition (HD) video | |||
| delivery | |||
| ▪ Offers guaranty bandwidth condition for multimedia such | |||
| as TV over IP (IPTV), Online-Gaming, Audio/Video | |||
| transmission, VoIP Calls, and extended Wireless LAN | |||
| coverage | |||
| ▪ Complies with CE, FCC, RoHS, and WEEE | |||
| ▪ Product Spec | |||
| ▪ Standards : | |||
| (1) HomePlug 1.0/AV Specification | |||
| (2) 10/100Mbps Fast Ethernet Standards | |||
| ▪ Bus Interface : | |||
| (1) 1 of 10/100Mbps Ethernet port | |||
| (2) 1 of Power Socket (EU, US, UK Type) | |||
| (3) 1 of Security Button and 1 of Reset Button |
 |
||
| ▪ Modulation : OFDM, QAM, QPSK, BPSK, ROBO carrier | |||
| modulation support | |||
| ▪ Frequency Band : 2MHz to 28MHz | |||
| ▪ Data Rate : 200Mbps | |||
| ▪ Security : 128 bits AES Encryption | |||
| ▪ Functions : | |||
| (1) Enhanced QoS (Enhanced Quality of Service) supports | |||
| eight levels of prioritized random access, contention free | |||
| access, and segment bursting | |||
|
(2) TDMA channel access |
|||
|
(3) CoS and ToS packet classifier |
|||
| (4) Supports IGMP, Unicast, IGMP managed Multicast | |||
| Stream | |||
| (5) Supports Multicast/Broadcast to set the default CAP for | |||
| multicast frames not in a snooped group and for broadcast | |||
| frames | |||
| ▪ Environment : | |||
| (1) Integrates 100V ~ 230V Switching Supply | |||
| (2) Operating Temp. : 0~55 C degree; Operating Humidity : | |||
| 10% ~ 90% (Non-condensing) | |||
| ▪ Shipping Information : | |||
| (1) 20 pieces per carton | |||
| (2) Dimension : 48 cm * 38 cm * 31 cm | |||
| (3) G.W. : 7.5 Kgs | |||
| (4) Accessory : CD, 2 of Ethernet Cables, QIG | |||
| (5) Complies with CE, FCC, RoHS, and WEEE | |||
| ¡@ | |||
