Communication is Power

VK-100PCIg : Wireless 11b/g PCI Card

▪ Product Features

▪ Product Image

▪ Complies IEEE 802.11b/g standard, and high speed transfer
data rate up to 54Mbps
▪ Supports 64/128 bit WEP, WPA (TKIP with IEEE 802.1x),
WPA2 (AES with IEEE 802.1x) for wireless security

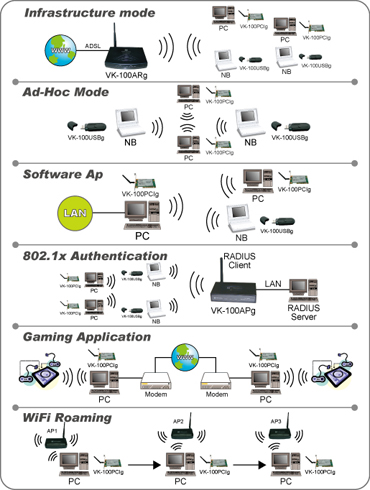

▪ Supports software AP (Access Point)
▪ Supports WMM (IEEE 802.11e QoS standard) function to
meet the multi-media data bandwidth requirement
▪ Supports CCX 2.0 (Cisco Compatible Extensions) for the
radio monitoring and fast roaming
▪ Supports Turbo Mode to enhance the data transfer speed
within the specific wireless network
▪ Complies 32-bit PCI V2.2/2.1 interface
▪ Provides several levels of power saving modes allowing
user customizes the way of saving the power from your
portable or handheld devices
▪ Transmit power can be adjusted from user interface
▪ Supports drivers for Windows 98SE/ME/2000/XP/Vista
▪ Complies with CE, FCC, RoHS, and WEEE

▪ Product Spec
▪ Standards : IEEE 802.11b/g
▪ Bus Interface : PCI 2.1 / 2.2 / 2.3, 66 / 33 MHz
▪ Channels : Worldwide
▪ Frequency Band : 2.4000 ~ 2.4835GHz
▪ Modulation : OFDM with BPSK, QPSK, 16QAM, 64QAM (11g)
BPSK, QPSK, CCK (11b)
▪ Data Rate : 54/48/36/24/18/12/11/9/6/5.5/2/1 Mbps
auto fallback
▪ Securities : 64/128-bit WEP Data Encryption, WPA (TKIP
with IEEE 802.1x), WPA2 (AES with IEEE 802.1x)
▪ Antenna Type : External detachable 2dBi Antenna
▪ Transmit Power : 18dBm and it can be adjusted from user
interface
▪ Receive Sensitivity : -70dBm @ 54Mbps, -83.5dBm @
11Mbps
▪ Environment : Operating Temp. : 0~55 C degree; Operating
Humidity : 10% ~ 95% (Non-condensing)
▪ Shipping Information :
(1) 50 units per carton
(2) Dimension : 40 cm * 35 cm * 31 cm
(3) G.W. : 9 Kgs
(4) Accessory : CD, QIG, Detachable Antenna
(5) Complies with CE, FCC, RoHS, and WEEE
