VK-100HP : Homeplug 85Mbps Ethernet Bridge |
|||
|
▪ Product Features |
▪ Product Image |
||
|
|
|||
| ▪ Complies with HomePlug 1.0 Specification | |||
| ▪ Complies with Fast Ethernet Standards | |||
| ▪ Supports 56-bit DES Encryption | |||
| ▪ Supports Turbo Mode for Homeplug Communications | |||
| ▪ Supports Data Rates Up to 85Mbps | |||
| ▪ Transmission Range Up to 200 Meters | |||
| ▪ Supports QoS | |||
| ▪ Plug-and-Play Installation | |||
| ▪ Integrates 100V ~ 230V Switching Supply | |||
| ▪ Backward Compatible with Homeplug 14Mbps Bridge | |||
| ▪ Coexists with Homeplug 200Mbps Ethernet Bridge | |||
| ▪ Maximum 16 nodes in one homeplug communication | |||

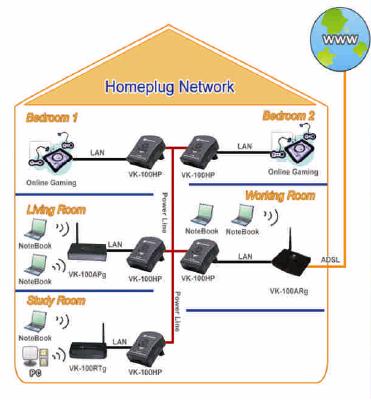

| ▪ Expands a wireless network into a "dead zone" when | |||
| wireless signals can not reach in some areas | |||
| ▪ Complies with CE, FCC, RoHS, and WEEE | |||
| ▪ Product Spec | |||
| ▪ Standards : | |||
| (1) HomePlug 1.0 Specification |
 |
||
| (2) 10/100Mbps Fast Ethernet Standards | |||
| ▪ Bus Interface : | |||
| (1) 1 of 10/100Mbps Ethernet port | |||
| (2) 1 of Power Socket (EU, US, UK type) | |||
| ▪ Modulation : OFDM, DQPSK, DBPSK, ROBO Carrier | |||
| Modulation | |||
| ▪ Frequency Band : 4.3MHz to 20.9MHz | |||
| ▪ Data Rate : 85Mbps | |||
| ▪ Security : 56 bits DES Encryption | |||
| ▪ Quality of Service (QoS) : YES | |||
| ▪ Environment : | |||
| (1) Integrates 100V ~ 230V Switching Supply | |||
| (2) Operating Temp. : 0~55 C degree; Operating Humidity : | |||
| 10% ~ 90% (Non-condensing) | |||
| ▪ Shipping Information : | |||
| (1) 20 pieces per carton | |||
| (2) Dimension : 48 cm * 38 cm * 31 cm | |||
| (3) G.W. : 6.5Kgs per carton | |||
|
(4) Accessory : CD, 2 of Ethernet Cables, QIG |
|||
|
(5) Complies with CE, FCC, RoHS, and WEEE |
|||
| ¡@ | |||
