VK-100APg : Wireless 11b/g Full Function Access Point |
|||
|
▪ Product Features |
▪ Product Image |
||
 |
|||
| ▪ Complies IEEE 802.11b/g standard, 10/100Mbps Ethernet | |||
| Protocol. | |||

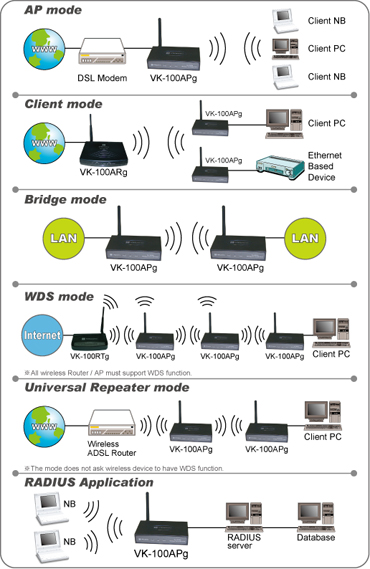

| ▪ Supports AP mode, Client mode, Bridge mode, WDS | |||
| (Wireless Distributed System) mode, and Universal Repeater | |||
| mode. | |||
| ▪ Some of FTA (Free To Air) Digital Satellite Receiver | |||
| are providing Internet based updating technology, and their | |||
| full wireless capabilities can be experienced with | |||
| VK-100APg. This bridge mode of VK-100APg will allow you | |||
| to get your FTA Digital Satellite Receiver into your wireless | |||
| networks, therefore allowing your FTA Receiver to be a | |||
| complete entertainment solution. | |||
| ▪ Clone MAC Address : You can set VK-100APg to use the | |||
| same MAC address on all outgoing packets through the LAN | |||
| interface. Thus the LAN network appears as a single device | |||
| to the external network. | |||
| ▪ Supports Power Saving to allow a computer to stop | |||
| transmitting through the wireless adapter during sleep | |||
| mode. | |||
| ▪ Supports IAPP (Inter Access Point Protocol) to allow the | |||
| wireless AP to communicate with neighboring access points | |||
| for wireless roaming. | |||
| ▪ Provides the Turbo mode to enhance the wireless | |||
| performance. | |||
| ▪ Wireless Security Options : WEP, WPA, WPA2 and WPA2 | |||
| Mixed. | |||
| ▪ Supports IEEE 802.1x for user authentication. | |||
| ▪ Specifies the RADIUS server information if you have an | |||
| external RADIUS (Remote Authentication Dial-In User | |||
| Service) server to authenticate a user. | |||
| ▪ Provides Wireless Access Control Mode, and MAC Filter. | |||
| ▪ The DHCP Settings allows you to set the Dynamic Host | |||
| Configuration Protocol (DHCP) server settings on the | |||
| wireless AP. | |||
| ▪ Uses Event Log to view log records and manage log | |||
| settings. | |||
| ▪ Upgrades firmware on the wireless AP through the web | |||
| user interface. | |||
| ▪ Complies with CE, FCC, RoHS, and WEEE | |||
|
▪ Product Spec |
|
||
 |
|||
| ▪ Standards : IEEE 802.11b/g, 10/100Mbps Ethernet | |||
| Protocol | |||
| ▪ Bus Interface : | |||
| (1) 1 of 2dBi Detachable Antenna | |||
| (2) 1 of 10/100M Ethernet Port (RJ-45) | |||
| ▪ Channels : Worldwide | |||
| ▪ Frequency Band : 2.4000 ~ 2.4835GHz | |||
| ▪ Modulation : OFDM with BPSK, QPSK, 16QAM, 64QAM (11g) | |||
| BPSK, QPSK, CCK (11b) | |||
| ▪ Data Rate : 54/48/36/24/18/12/11/9/6/5.5/2/1 Mbps | |||
| auto fallback | |||
| ▪ Securities : | |||
| (1) 64/128-bit WEP Data Encryption, WPA, WPA2 | |||
| (2) Built-in Firewall, MAC Filter | |||
| (3) Password protection for system management | |||
| (4) Event Log | |||
| ▪ Function : | |||
| (1) AP mode, Client mode, Bridge mode, WDS mode, and | |||
| Universal Repeater mode | |||
| (2) Power Saving, IAPP, Turbo mode | |||
| (3) WEP, WPA, WPA2 and WPA2 Mixed | |||
| (4) IEEE 802.1x and RADIUS server information for user | |||
| authentication | |||
| (5) Wireless Access Control Mode | |||
| (6) DHCP Server, Event Log | |||
| (7) Clone MAC Address : You can set VK-100APg to use the | |||
| same MAC address on all outgoing packets through the LAN | |||
| interface. Thus the LAN network appears as a single device | |||
| to the external network. | |||
| ▪ Antenna Type : External detachable 2 dBi antenna | |||
| ▪ Transmit Power : 18dBm, it can be adjusted from UI | |||
| ▪ Receive Sensitivity : -65dBm @ 54Mbps, -80dBm @ | |||
| 11Mbps | |||
| ▪ Environment : Operating Temp. : 0~55 C degree; Operating | |||
| Humidity : 10% ~ 90% (Non-condensing) | |||
| ▪ Shipping Information : | |||
| (1) 16 units per carton | |||
| (2) Dimension : 57 cm * 38 cm * 27 cm per carton | |||
| (3) G.W. : 12Kgs per carton | |||
| (4) Accessory : CD, Ethernet Cable, QIG, Power Adapter, | |||
| Detachable Antenna | |||
| (5) Complies with CE, FCC, RoHS, and WEEE | |||
| ¡@ | |||
